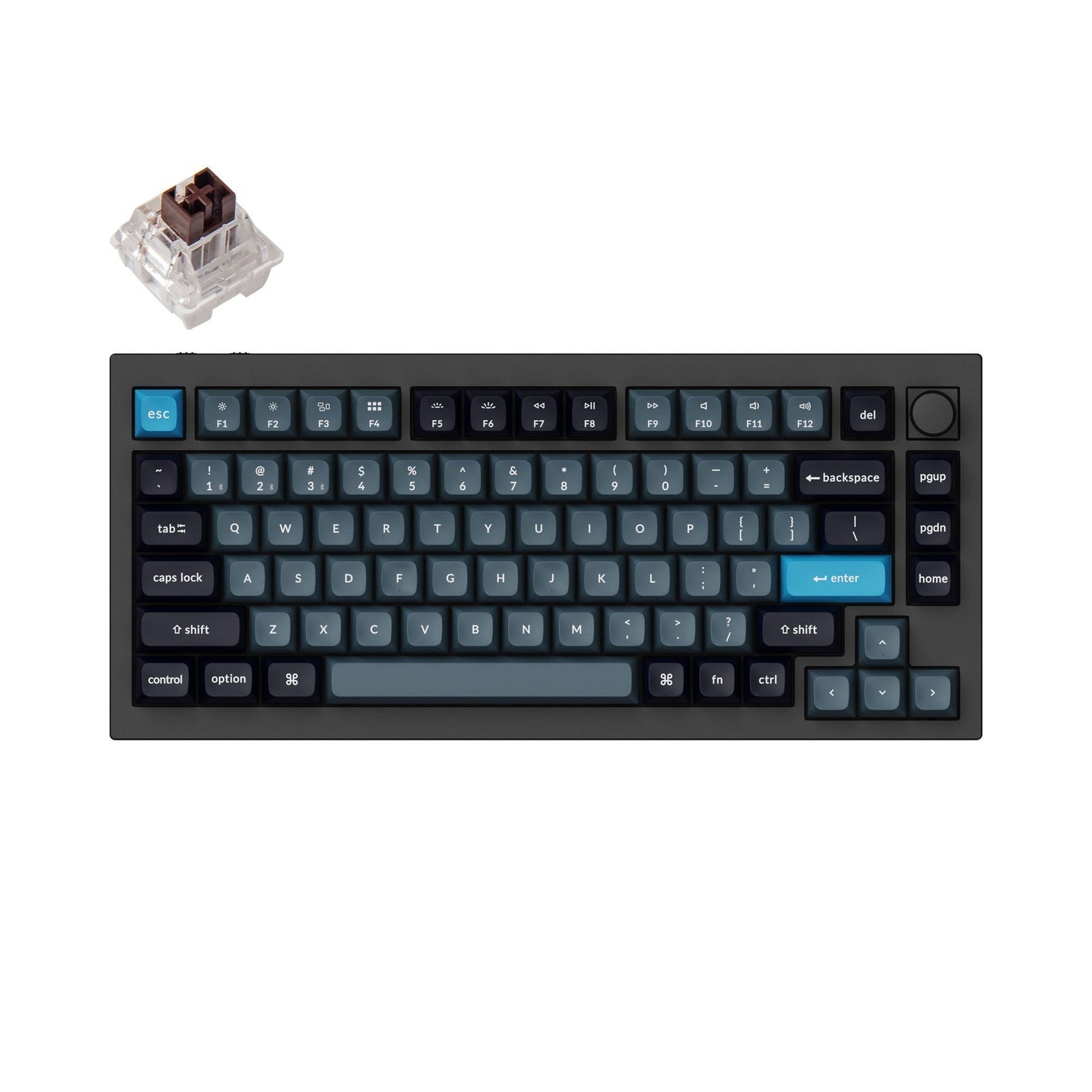

Keychron Q1 Pro
Meet the Keychron Q1 Pro, a groundbreaking full metal QMK/VIA wireless custom mechanical keyboard. Along with our many premium designs, including double-gasket design, PBT keycaps, screw-in stabs, etc., it will deliver you an unprecedented typing experience!
Choose the keycaps, switches and more accessories for your Q1 Pro
Wireless and Wired
An excellent solution for multitasking. You can connect the Q1 Pro with up to 3 devices wirelessly via its stable Broadcom Bluetooth 5.1 for seamless multitasking across your laptop, phone, and tablet. Switch among them swiftly, and it’s fully compatible with both Mac and Windows. A reliable USB Type-C wired connection is also available when you need it.
A Refined Piece Of Metal Art
The entire metal body is crafted with 6063 aluminum that is processed through CNC machined, polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to make this solid metal piece of art that is the Q1 Pro.
We designed every component to be able to assemble easily so you can customize and adjust each component with ease to create your ultimate typing experience.
The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the sound resonance between the metals and reduce the noise of the impacted metals.
Experience the next level of key sounds and comfort with our gasket mount design together with a flexible PC (Polycarbonate) plate. This design combination allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.
An Epic Core Inside The Keyboard
A powerful ultra-low-power ARM Cortex-M4 32-bit STM32L432 chip (MCU) that is equipped with 128K Flash to provide more flexibility for developers. The polling rate is 1000 Hz out of the box on type-c wired mode (90 Hz on wireless mode), which makes latency non-existent for the competitive gamer.
KSA Double-Shot PBT Keycaps
To further fine-tune your typing experience, we designed our unique Keychron spherical-angle (KSA profile) double-shot keycap set with premium non-backlight shine through PBT material, that is oil-resistant and durable for long-term use.
Suitable for All Devices
Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Q1 Pro comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.
Designed to enhance your creative workflow, the aluminum rotary encoder allows you easily customize the knob to your desired key or macro commands like zooming in/out, adjusting screen brightness, brush size, volume, selecting video clips or photos, or backlight hue.
Program The Q1 Pro with QMK & VIA.
Endless possibilities for a fluid workflow thanks to its ability to remap any key, and create macro commands, shortcuts, or key combinations through the QMK/VIA.
Check out the video above demonstrating how to remap the Home key to an Eject key with the VIA software to create a shortcut to put your Mac to sleep (Command-Option-Eject).
Get the Q1 Pro keymap working on VIA
Since the VIA code for the Q1 Pro is still awaiting approval from Github, it is not yet automatically recognized. Please download the appropriate keymap JSON file (ANSI or ISO) below, open VIA, turn on the "Show Design tab" on the "Settings" tab, enable "Use V2 definitions (deprecated)" on the "Design" tab, and drag the JSON file into the “Design” tab on VIA to get the Q1 Pro keymap working on VIA.
Q1 Pro Keymap JSON Files

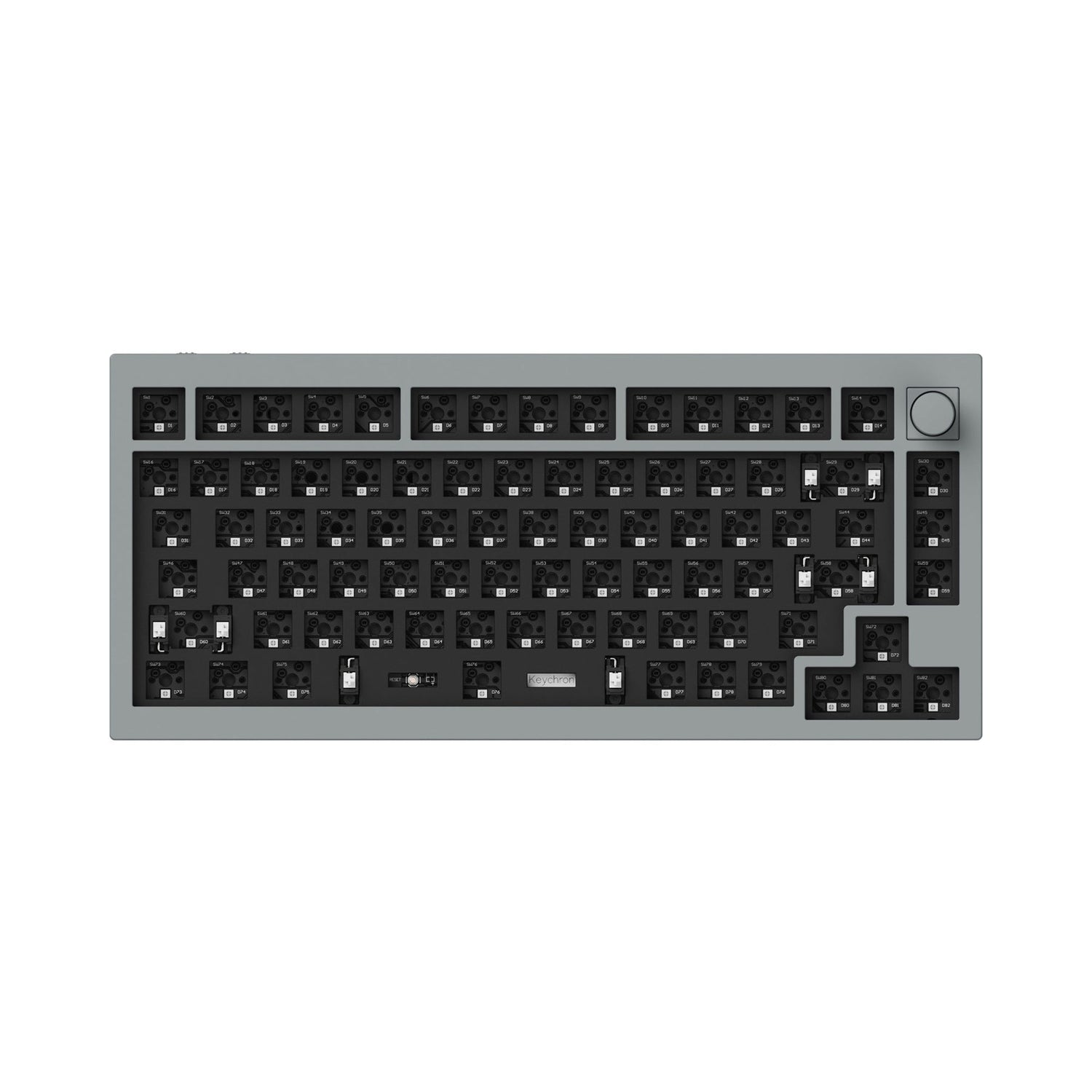

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.
South-facing RGB LED Lights.
The south-facing RGB is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the user installs Cherry-profile alternative keycaps on their keyboard.
Keychron K Pro Mechanical Switch
By optimizing the switch mold, the Q1 Pro switch wobbles less than the standard mechanical switch and feels smoother on each hit. Plus, the factory pre-lubed K Pro switches will ensure the best fingertip smoothness. Not to mention the banana switch provides an early tactile bump at the top with a uniquely smooth experience like those Panda switches on the market.
Typing Sound Test
No detail is too insignificant when it comes to your fingertip feel. We’ve integrated the PCB-mounted screw-in stabilizers for a smoother typing experience with less wobbliness on the big keys such as the space bar, shift, enter, and delete keys. You can even customize your favorite stabilizers on your own.
|Front Height||22.6 mm (without keycaps)|
|Back Height||35.8 mm (without keycaps)|
|Feet Height||2.4 mm|
|Weight||1825g ± 10g (Fully assembled weight)|
|Body Material||Full CNC machined aluminum|
|Keycap||KSA double-shot PBT keycaps, not shine-through (Fully Assembled version)|
|Switch||Keychron K Pro (Fully Assembled version)|
|Stabilizer||Screw-in PCB stabilizer|
|Backlight||South-facing RGB LED|
|Hot-swappable||Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX and Kailh, etc.|
|MCU||Ultra-low-power ARM Cortex-M4 32-bit STM32L432 (128KB Flash)|
|Polling Rate||1000 Hz (wired) / 90 Hz (wireless)|
|N-Key Rollover (NKRO)||Yes for both wireless and wired modes|
|Operating Environment||-10 to 50℃|
|Battery||4000 mAh Rechargeable li-polymer battery|
|BT Working Time (Backlit off)||Up to 300 hours (Lab test result may vary by actual use)|
|BT Working Time (RGB)||Up to 100 hours (Lowest brightness)|
|Connectivity||Bluetooth / Type-C wired|
|Bluetooth Device Name||Keychron Q1 Pro|
