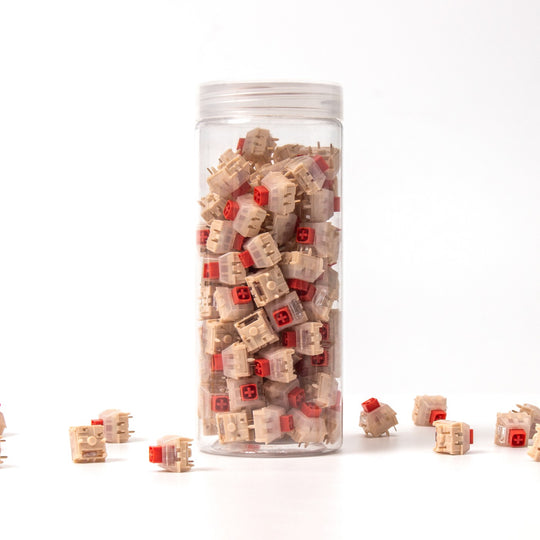

Kailh Red Bean Pudding Box Switch
Kailh Red Bean Pudding Box Switch - Red Bean Pudding / 110 Switches is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Kailh Red Bean Pudding Box Switch
Linear Typing Feel
The Kailh Red Bean Pudding Switch is a box switch with a comfortable linear typing feeling. This switch is built with a red stem with a translucent cover and POM material base. Its whole appearance looks like a pudding, but with a touch of feeling of red bean, and is very fresh.
POM Material Stem And Base
The Red Bean switch is equipped with a stem and base made of self-lubricating POM material and delivers a smooth feeling.
Short Spring. Stronger Rebound
The Jellyfish Switches come in linear and clicky options to meet the need of beginners and switch enthusiasts.
90% Light Transmittance
The switch has a light guide post within the switch housing to let more RGB light shine through and it is said that it can be reach 90% light transmittance.
Dustproof & Waterproof "Box" Design
Its box design has dustproof and waterproof features, increasing the switch’s lifespan and longevity.
Product Structure
Feature And Specs
| Type | Linear |
|---|---|
| Operation Force | 45±10 gf |
| Pre-travel | 1.8±0.4 mm |
| Return Force | ≥35 gf |
| Total Travel | 3.6±0.3 mm |
| Sound Level | Low |
| Operation Life | Up to 80M cycles |
| Suitable For | Gaming/office |
| Product Name | Red Bean Pudding Switch |
|---|---|
| Stem | POM |
| Top Housing | PC |
| Bottom Housing | POM |
| Contact | Composite gold |
| Spring | Spring steel |
| Protecting Cover | Nylon |
| Slider | POM |
| Light Guide Post | PC |
| Pins | 5-Pin |
| Factory Pre-lubed | No |
| SMD LED Support | Yes |
Compatible Keyboards
Any K series (Gateron Mechanical Hot-Swappable or Keychron Mechanical Hot-Swappable versions only), K Pro series (Normal-profile versions only), C and C Pro series (Hot-Swappable versions only), V series, Q series and Q Pro series Keychron keyboards.
