Keychron K1 Pro QMK/VIA Wireless Custom Mechanical Keyboard ISO Layout Collection
Keychron K1 Pro QMK/VIA Wireless Custom Mechanical Keyboard ISO Layout Collection - RGB Backlight (Hot-Swappable) / UK-ISO / Low Profile Gateron Mechanical Red is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Keychron K1 Pro ISO (including German, French, Nordic, Spanish, Swiss, and UK ISO layouts) is an ultra-slim wireless custom mechanical keyboard that allows anyone to master any keys or macro commands on its 80% tenkeyless layout through VIA, it has included LSA (low profile spherical-angled) profile keycaps for both Windows and macOS, and users can hot-swap with Gateron low-profile MX mechanical switch in a breeze.
No discount code can be used for the K1 Pro.
Please drop your email on "Notify Me When Available" if the product model is out of stock.
Keychron K1 Pro QMK/VIA Wireless Custom Mechanical Keyboard ISO Lay...
Keychron K1 Pro
ISO Layout Collection
The Keychron K1 Pro is a 80% layout low profile wireless mechanical keyboard with QMK/VIA enabled for endless possibilities.
K1 Pro ISO Layout Versions
These versions include the UK, German, Swiss, Nordic, French, and Spanish layouts, all with extra keycaps suitable for Mac and Windows devices.

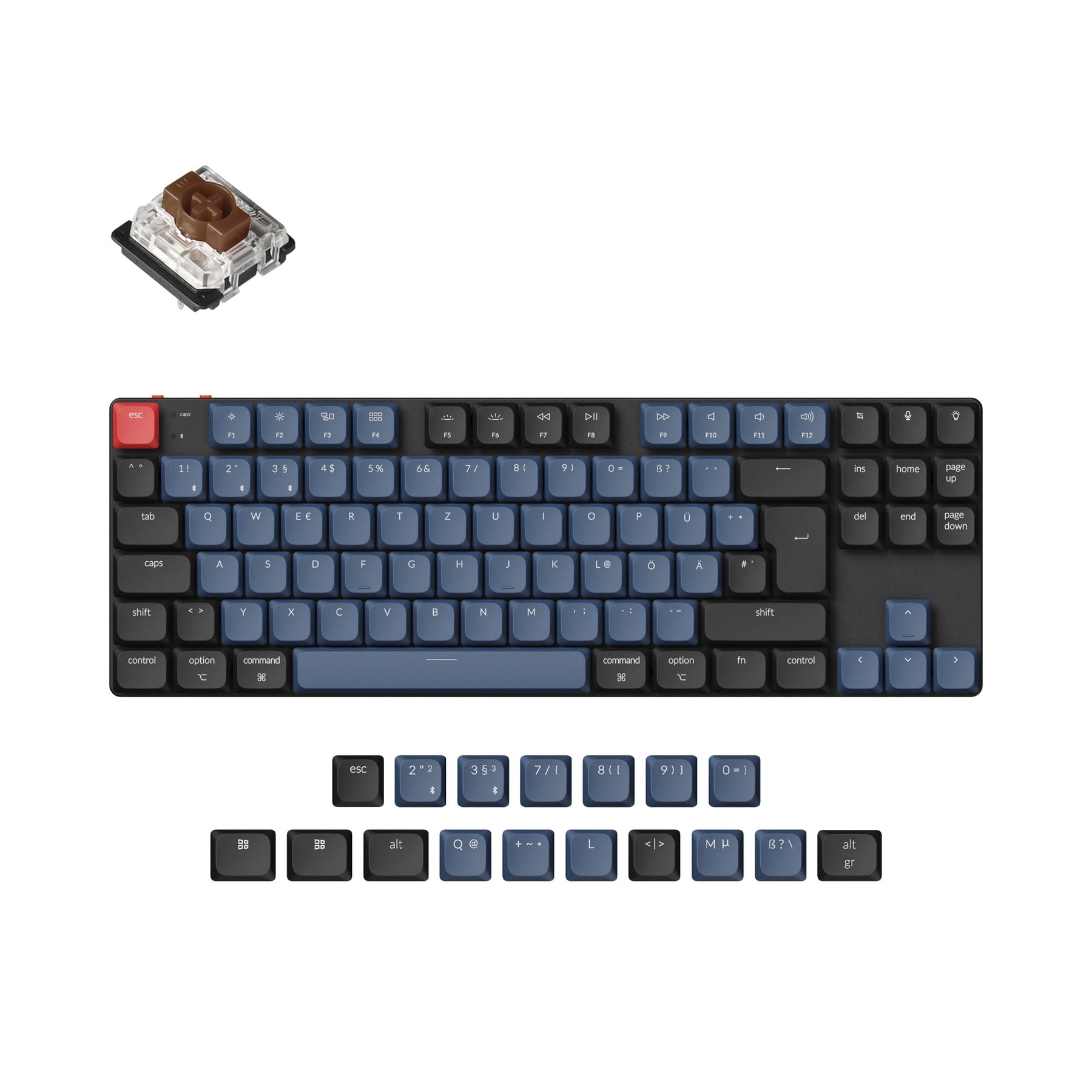

🇩🇪 German DE-ISO Layout

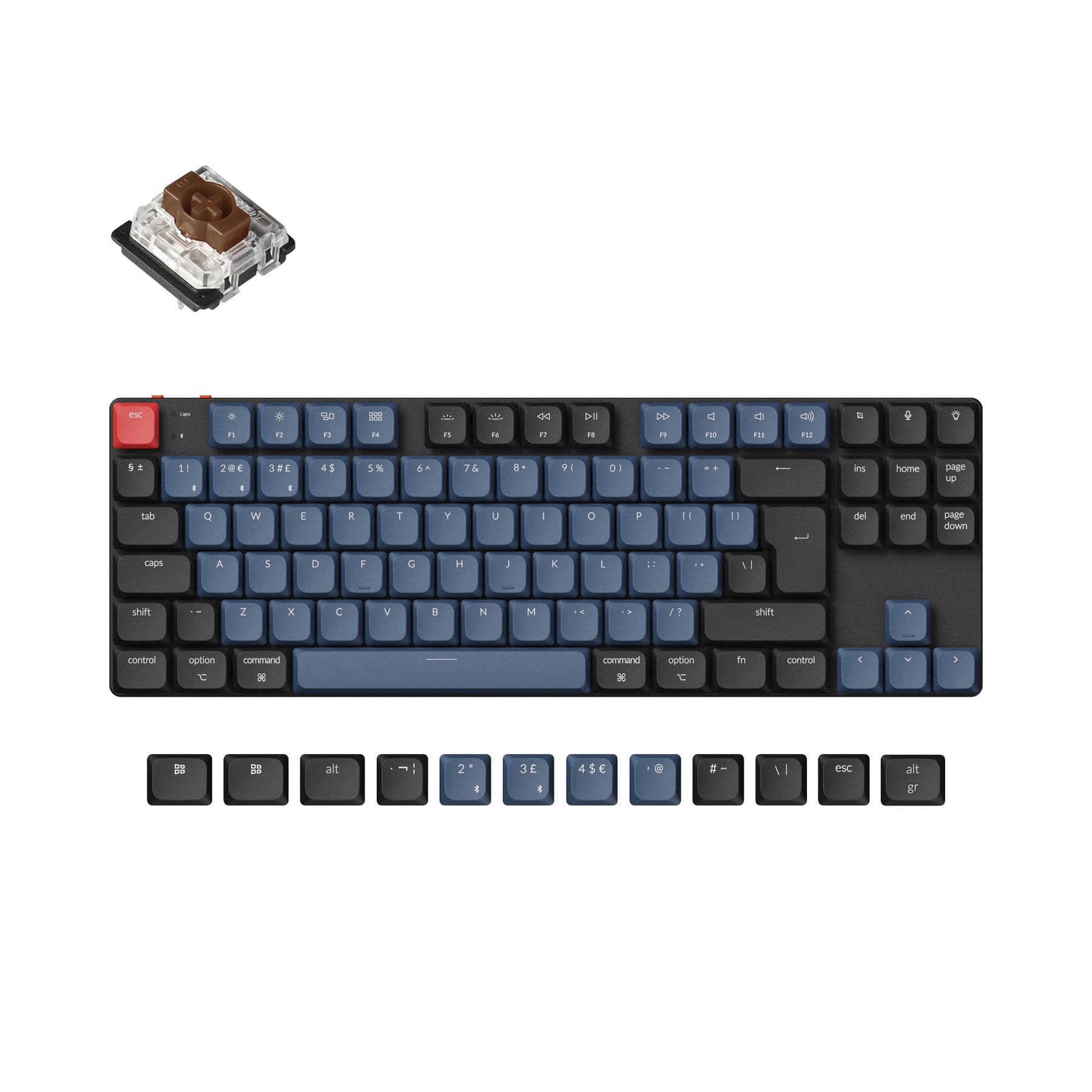

🇬🇧 UK-ISO Layout

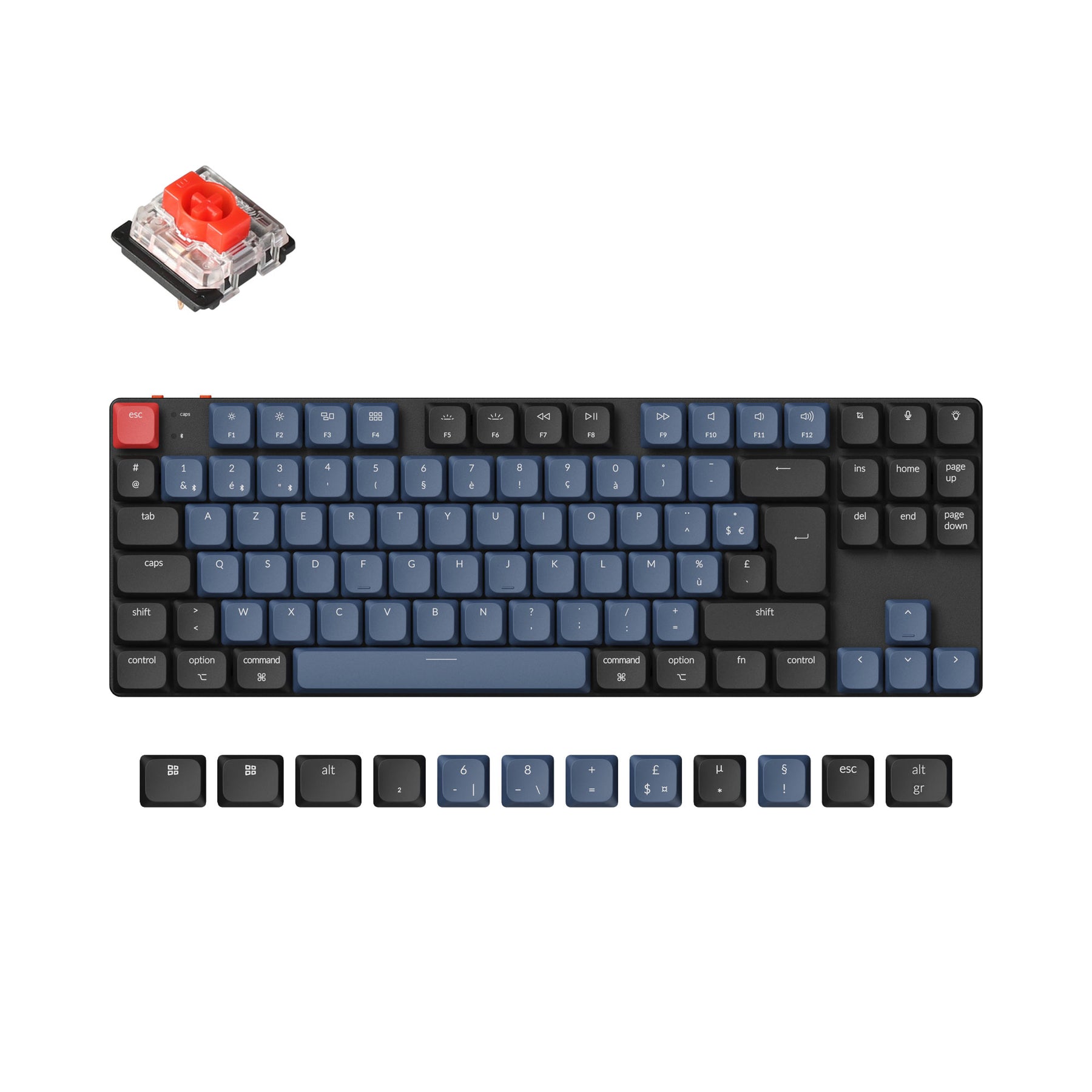

🇫🇷 French-ISO Layout
🇩🇰 🇫🇮 🇮🇸 🇳🇴 🇸🇪 Nordic-ISO Layout

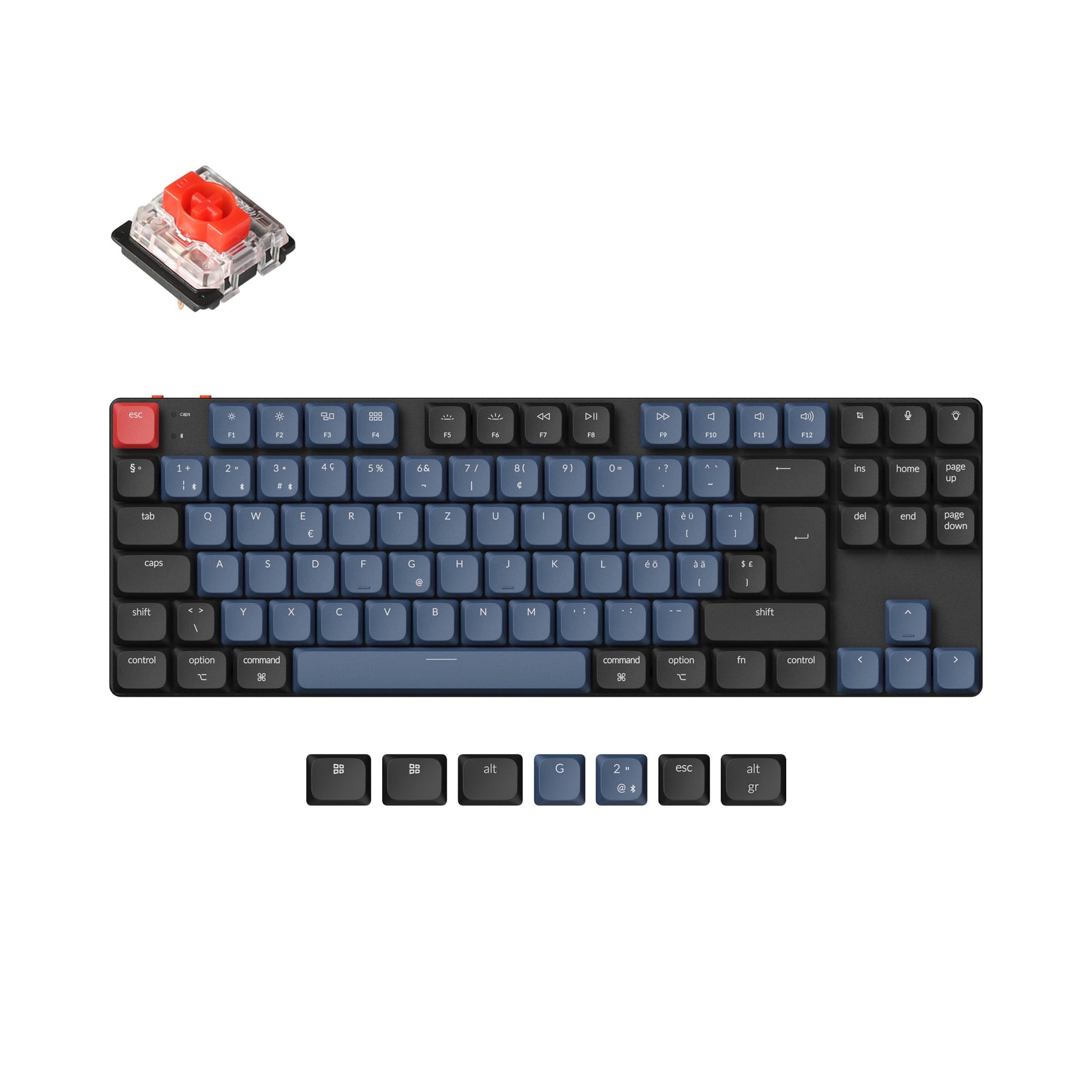

🇨🇭 Swiss-ISO Layout

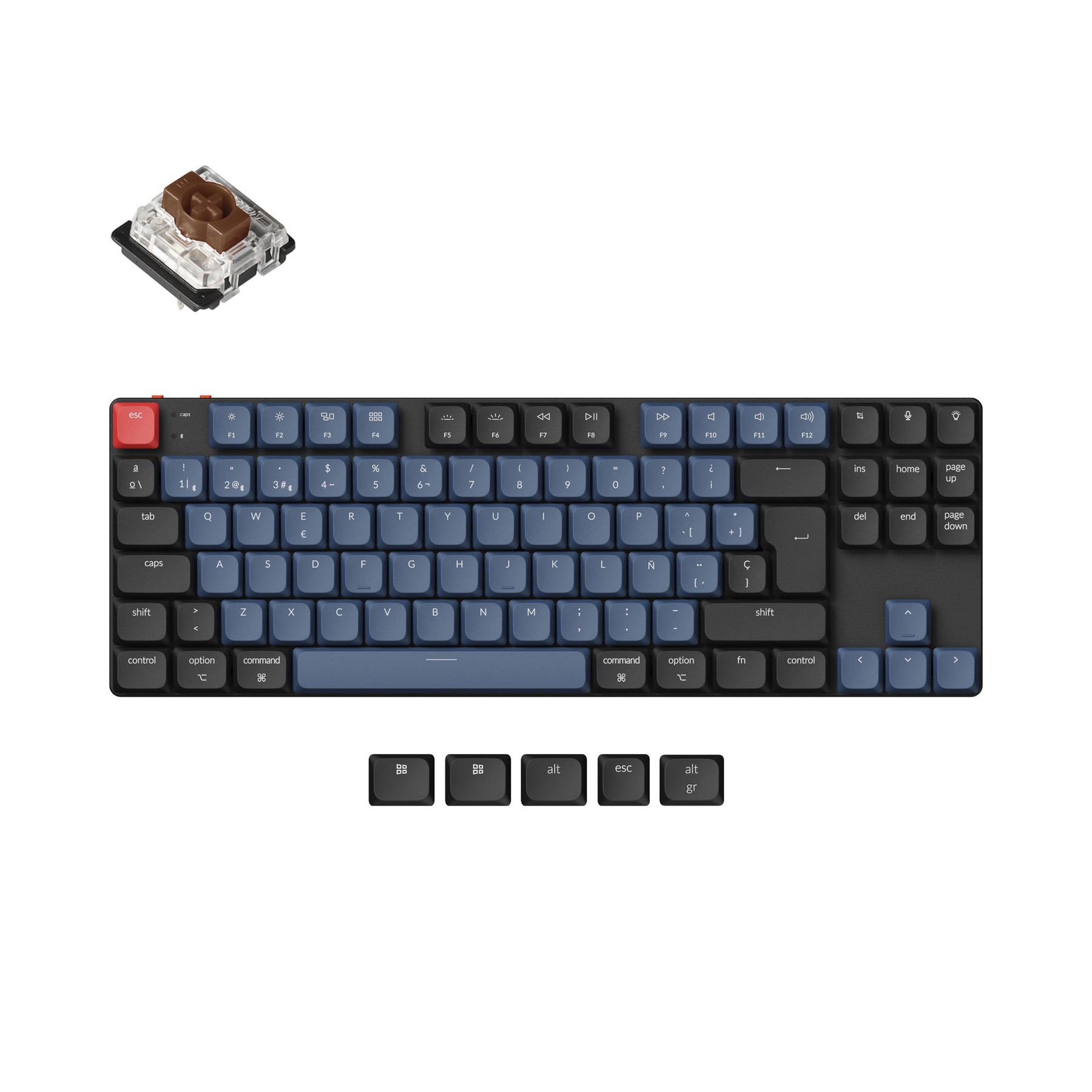

🇪🇸 Spanish-ISO Layout
Wireless and Wired
An excellent solution for multitasking. Connects the K1 Pro with up to 3 devices wirelessly via its stable Broadcom Bluetooth 5.1 for seamless multitasking across your laptop, phone, and tablet. Switch among them swiftly, and it’s fully compatible with both Mac and Windows.
You can also enjoy a USB Type-C wired connection with 1000 Hz polling rate which is engineered for the competitive game.
Ultra-Slim
The innovative low-profile Gateron switch is 31% slimmer than conventional normal profile switches makes the aluminum body K1 Pro one of the thinnest wireless mechanical keyboards in the world. While still delivering a distinguished tactile response.
Program with QMK & Launcher.
The open-source QMK firmware means endless possibilities for key remapping, macros, shortcuts, and more. Now you can easily customize each key with the Keychron Launcher web app.
Click here to use Keychron Launcher* Please use the latest version of Chrome / Opera / Edge browser to open the Launcher and connect the keyboard to your device via wired mode.
Get the keymap working on VIA
Since the VIA code for the K1 Pro ISO is still awaiting approval from Github, it is not yet automatically recognized, so you will need to manually download and import the K1 Pro keymap.
Please download the keymap JSON file below. Connect your keyboard and device with the provided cable, and toggle the switch to cable mode. Open VIA, click on the "Show Design tab" on the "Settings" tab, and drag the JSON file into the “Design” tab on VIA to get the K1 Pro keymap working on VIA.
K1 Pro Keymap JSON Files
Suitable For All Devices
Offers a Mac layout while still being compatible with Windows, the K1 Pro is one of the few on the market that has the same multimedia and function key functions as Apple keyboards for Mac users, but with more tactile feedback.
You can even configure different keymaps for both Mac and Windows devices. While VIA software is compatible with macOS, Windows, and Linux. Includes keycaps for both macOS and Windows (and additional esc and enter keys) to allow you to switch between operating systems with ease.
An Epic Core Inside
A powerful ultra-low-power ARM architecture MCU equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz on wired mode right out of the box, which makes the latency hardly noticeable even in competitive games.
Hot-swappable
We all have our unique typing preferences, that’s why we are offering hot-swappable option on the K1 Pro, so you can easily hot-swap every low-profile Gateron mechanical switch in a few seconds to customize the typing experience without soldering.
*The K1 Pro is currently compatible with Gateron low-profile mechanical switches only, as QMK does NOT support low-profile optical switches.
LSA Profile ABS Backlight Shine-Through Keycaps
To further leverage your typing experience, the K1 Pro ISO version comes with our unique LSA profile (Low profile with spherical angle) and ABS keycaps that aim to provide a more comfortable fingertip feel and a fantastic backlight shine-through effect.
RGB Backlights
Comes with more than 22 types of RGB backlight settings (as well as a static white backlight option). You can further fine-tune the RGB hue, saturation, brightness, effect speed with ease.
Redesigned Stabilizers
We’ve redesigned the stabilizers to make it stay on the level the same way as the switch while making sure it still delivers reliability and less wobble on the big keys like the space bar, left Shift, backspace, and Enter key.
Low-Profile Gateron Switch
The Gateron low-profile MX 2.0 Mechanical switch is designed to enhance reliability. Gateron's reputable switches are your best choice for a precise, smooth, and reliable fingertip feel whether you prefer linear (red), clicky (blue), or something in between (brown).
Ergonomic Support
Three levels of adjustable typing angle aim to provide long-lasting ergonomic wrist support.
What's in the box?
SPECIFICATION
Number of Keys: 88 (80%)
Switches: Gateron low-profile mechanical
Switch Face: North-facing
Number of Multimedia Keys: 12
Frame Material: ABS+Aluminum frame
Keycap Material: Low-profile shine-through ABS
Layout: ISO
Polling Rate (Wired Mode): 1000Hz
Polling Rate (Wireless Mode): 90Hz
N-Key Rollover (NKRO): Yes for both wireless and wired modes
*The K1 Pro is currently compatible with Gateron low-profile mechanical switches only, as QMK does NOT support low-profile optical switches.
CONNECTIVITY AND POWER
Backlit: 22 types of RGB backlight options plus endless possibilities
Battery: 2000 mAh rechargeable li-polymer battery
BT Working Time (Backlit off): Up to 100 hours (Lab test result may vary by actual use)
BT Working Time (RGB): Up to 33 hours (Lowest brightness)
Connection: Bluetooth and Type-C cable
Bluetooth version: 5.1
Bluetooth Device Name: Keychron K1 Pro
Compatible System: macOS/Windows/Linux
PHYSICAL UNIT
Dimension: 346 x 118.5 mm (13.62 x 4.66")
Weight: 580 g / 1.28 lbs
Height without keycap (front): 7.72 mm (0.3")
Height without keycap (rear): 14.7 mm (0.58")
Height incl. keycap (front): 18.2 mm (0.72")
Height incl. keycap (rear): 24.1 mm (0.95")
Typing Angle: 3.37º, 4.2º and 6.7º
MCU: Ultra-low-power ARM Cortex-M4 32-bit STM32L432 (128KB Flash)
Operating Environment: -10 to 50℃
Learn more about the Keychron K1 Pro such as the shortcuts, VIA tutorial, factory reset, and more in the FAQ section.
Layout Difference
