Keychron Q1 QMK Custom Mechanical Keyboard ISO Layout Collection

SKU: Q1-M3-UK
R$ 1.070,00

TYPE
Layout Version
SWITCHES

The fully assembled knob version includes:
  • The keyboard PCB, the case, and the steel plate.
  • OSA Profile ABS backlight shine-through keycaps (included Mac & Windows keycaps).
  • Gateron G Pro switches.

Keychron Q1 QMK custom mechanical keyboard ISO layout collection comes with the UK, German, Nordic, Swiss, French, and Spanish layout.

No discount codes can be used for Q1 ISO layout version.

Please drop your email on "Notify Me When Available" if the product model is out of stock.

Keychron Q1 V2
ISO Layout Versions

A fully customizable 75% layout mechanical keyboard featured QMK / VIA support; designed with all the premium features with unlimited possibilities.

Keychron Q1 75% ISO Layout Custom Mechanical Keyboard
Keychron Q1 75% ISO Layout Custom Mechanical Keyboard
Features of Keychron Q1 75% ISO Layout Custom Mechanical Keyboard

The Q1 is a revolutionary all-metal keyboard with customizable capabilities for every switch, keycap, stabilizer, knob, and even the plate. It’s designed for a personalized experience and premium typing comfort.

Customize Your Q1

Choose the keycaps, switches and more accessories for your Q1 ISO layout keyboard

Q1 ISO Layout Version

The Keychron Q1 QMK custom mechanical keyboard ISO layout collection comes with the UK, German, Nordic, Swiss, French, and Spanish layouts. Each Q1 ISO layout keyboard is also equipped with extra keycaps that fully satisfy your needs.

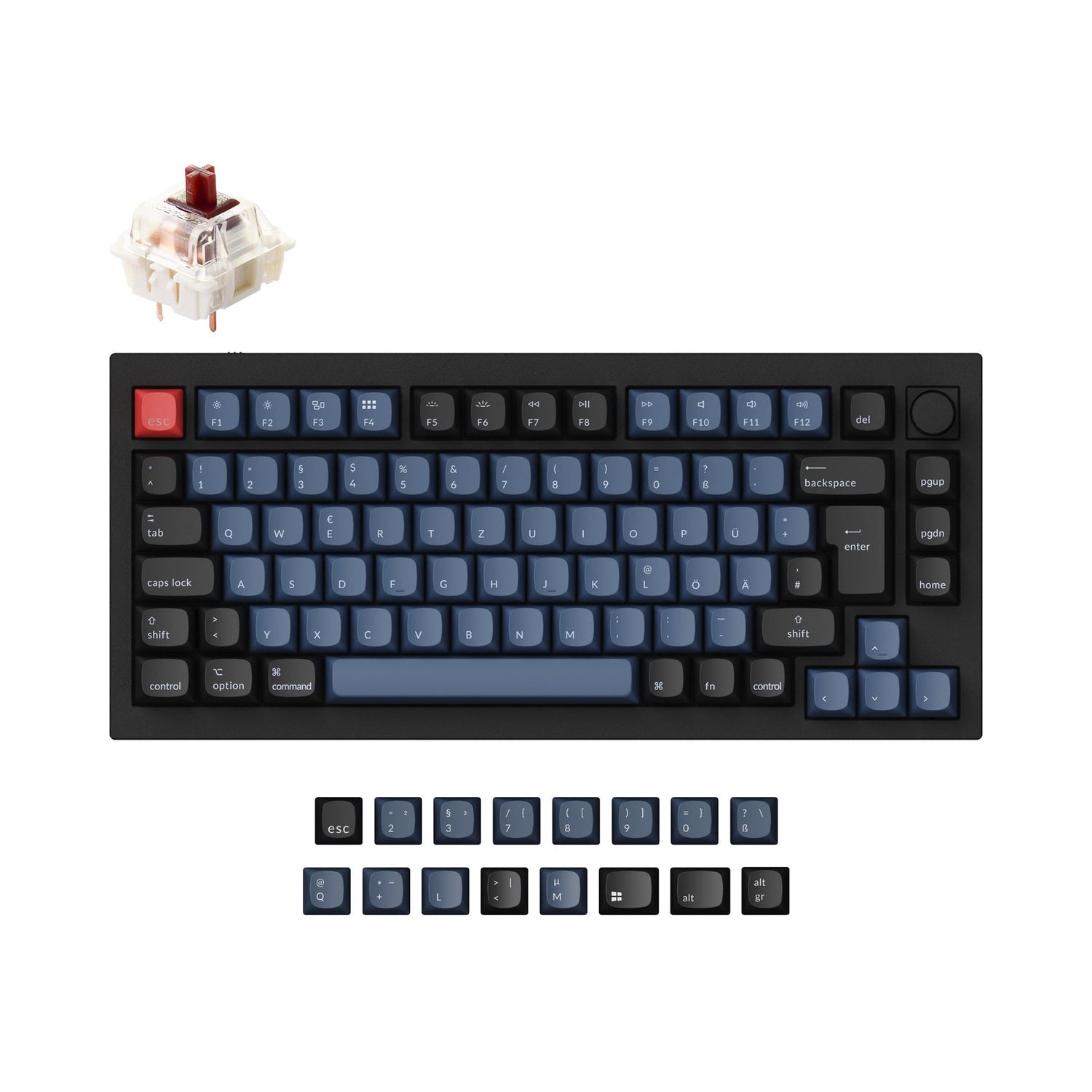

🇩🇪 DE-ISO Layout

Keychron Q1 75% German DE ISO Layout Custom Mechanical Keyboard

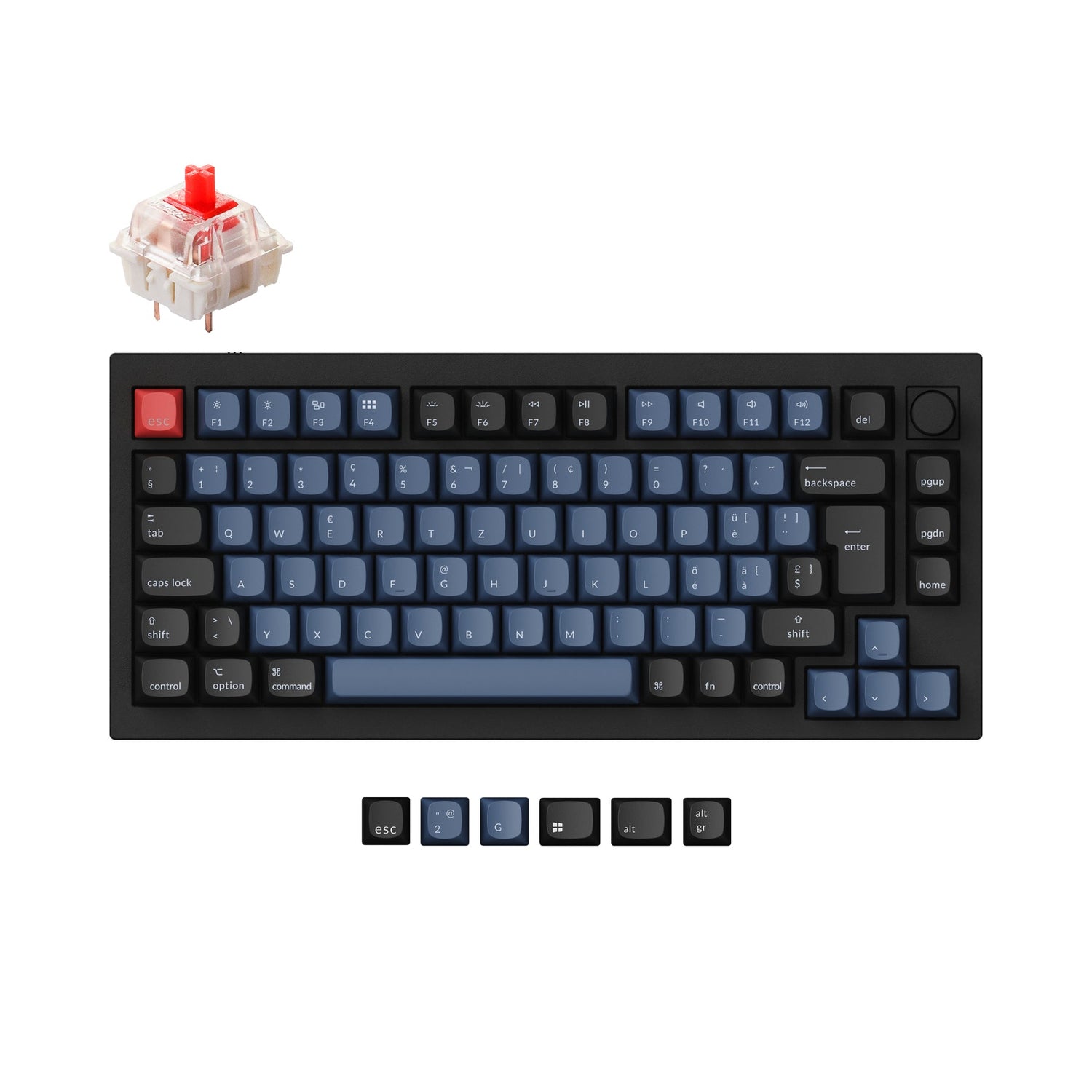

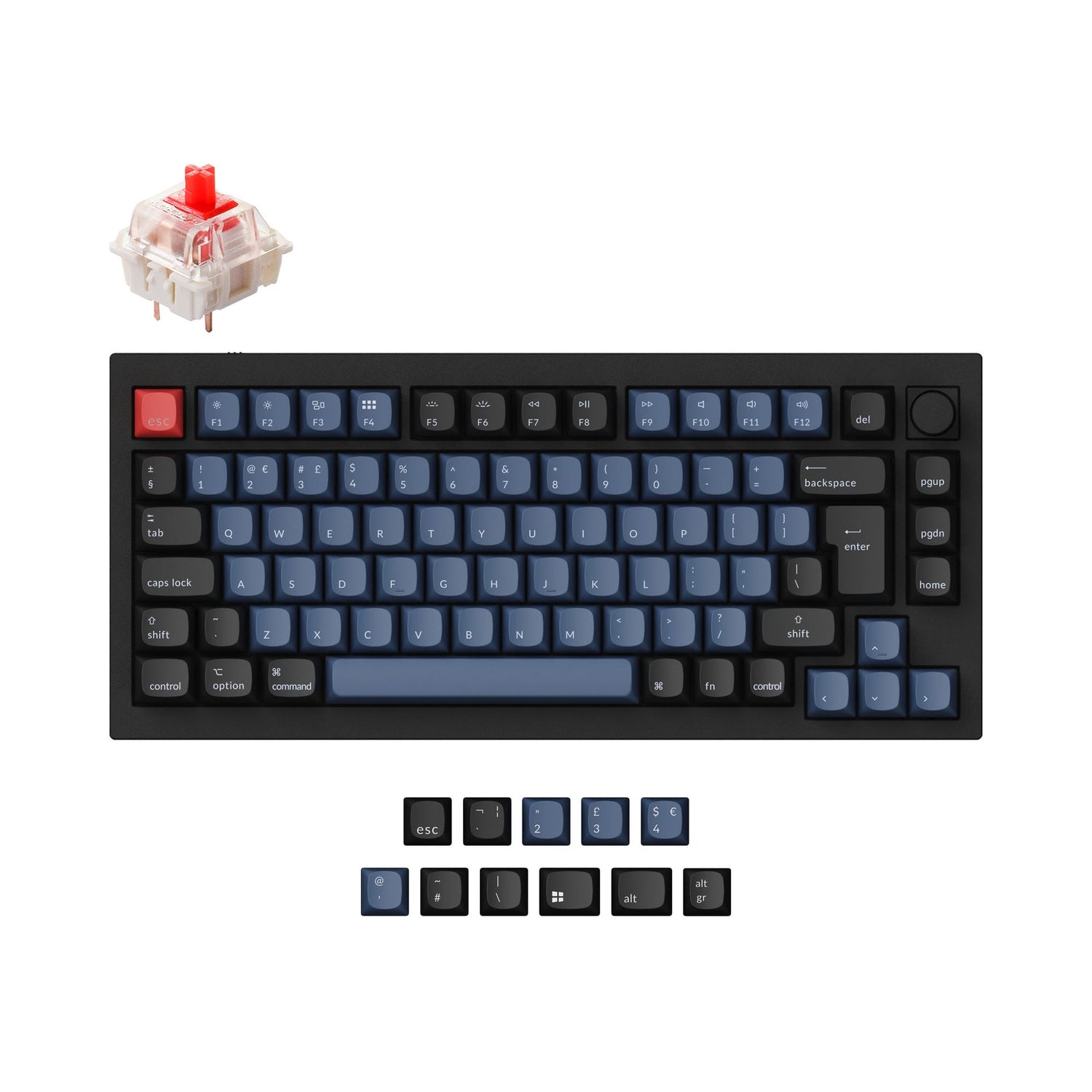

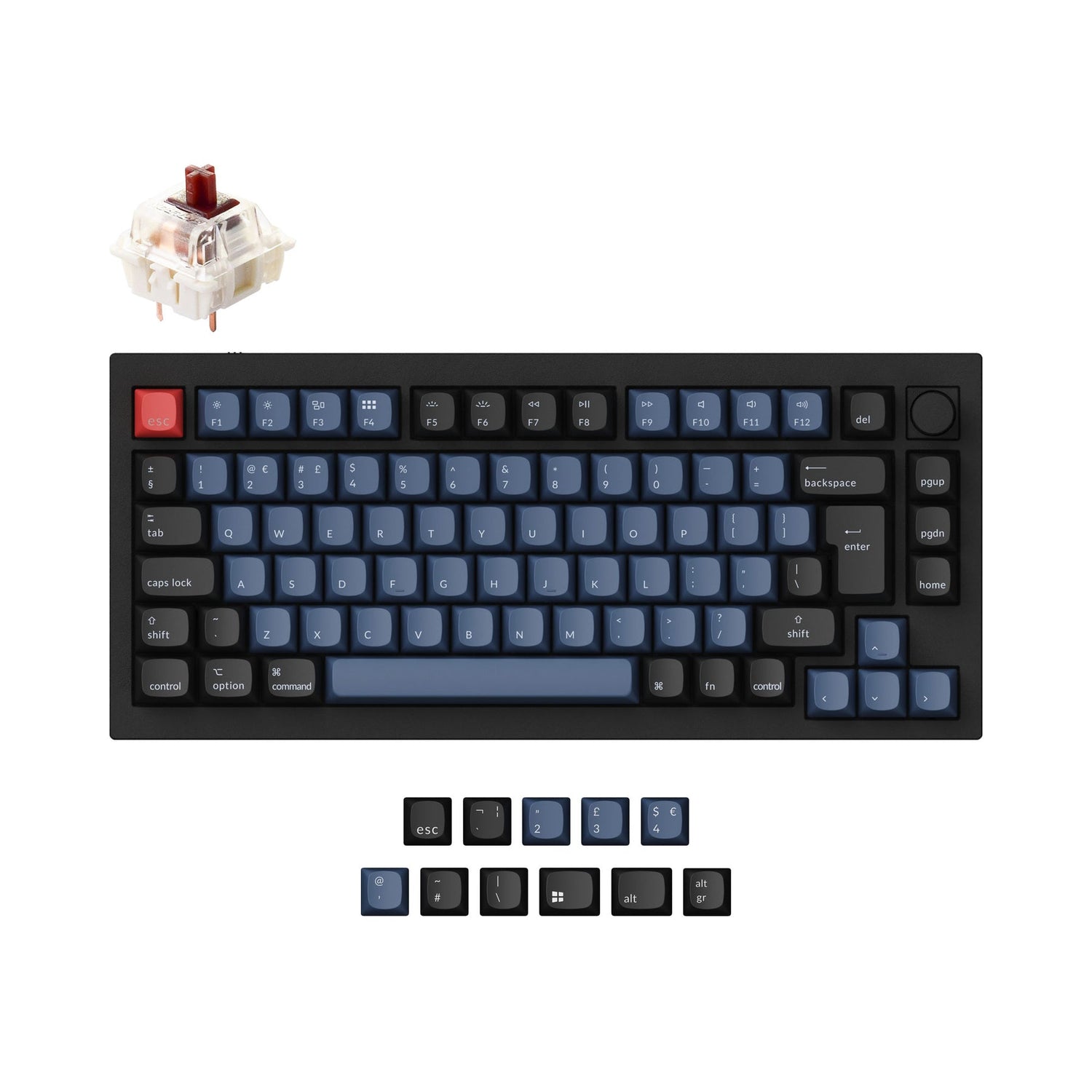

🇬🇧 UK-ISO Layout

Keychron Q1 75% UK ISO Layout Custom Mechanical Keyboard

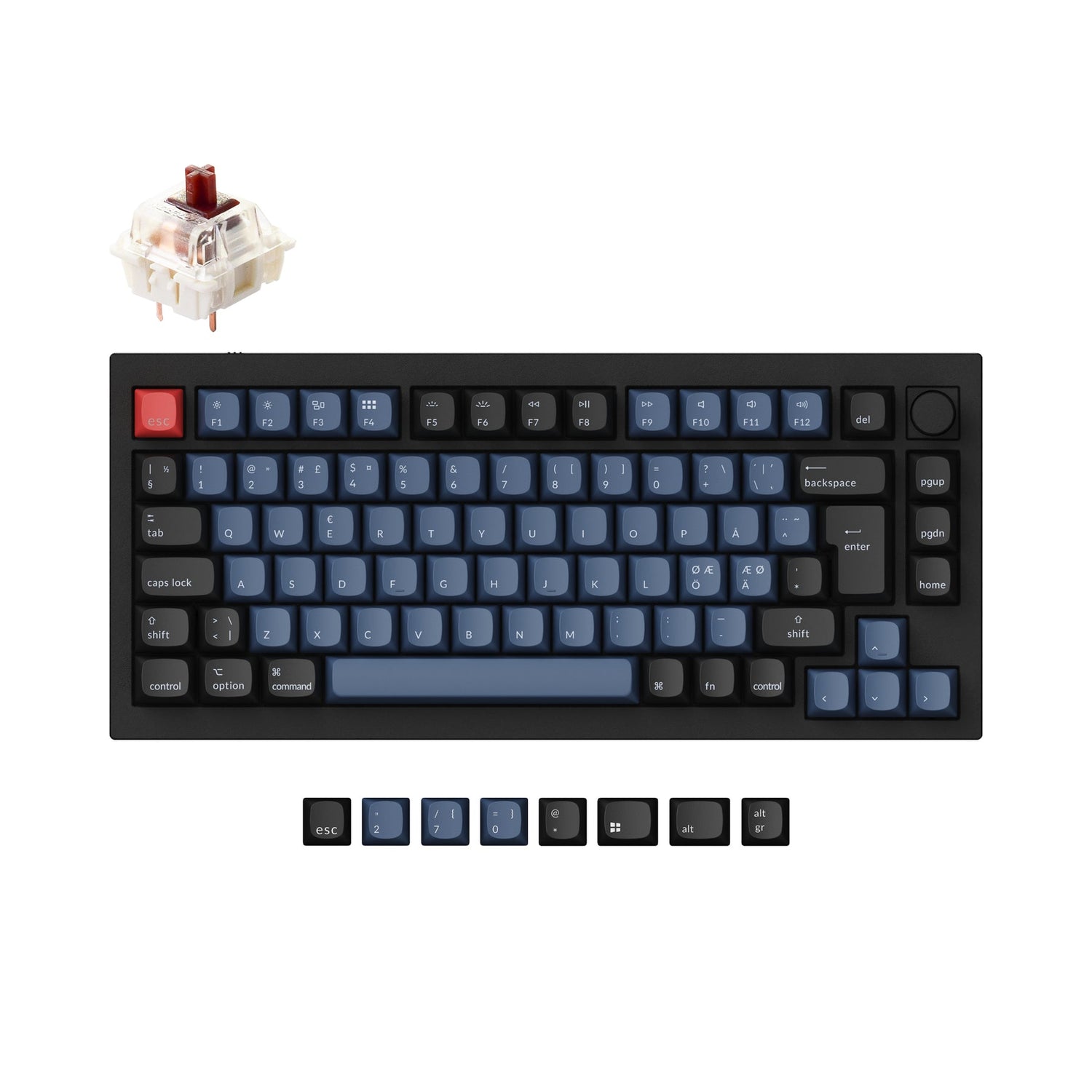

🇩🇰 🇫🇮 🇮🇸 🇳🇴 🇸🇪 Nordic-ISO Layout

Keychron Q1 75% Nordic ISO Layout Custom Mechanical Keyboard

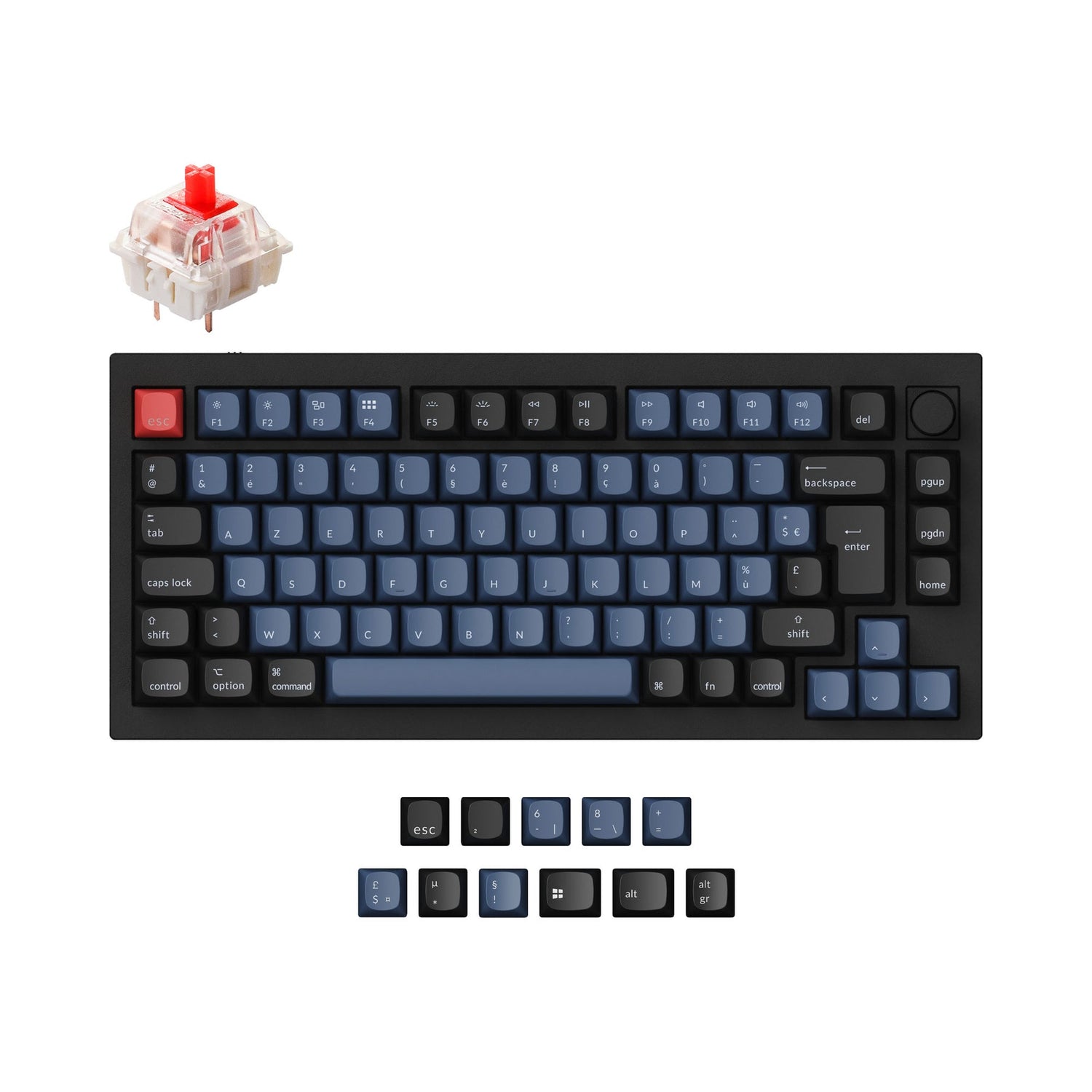

🇫🇷 FR-ISO Layout

Keychron Q1 75% French ISO Layout Custom Mechanical Keyboard

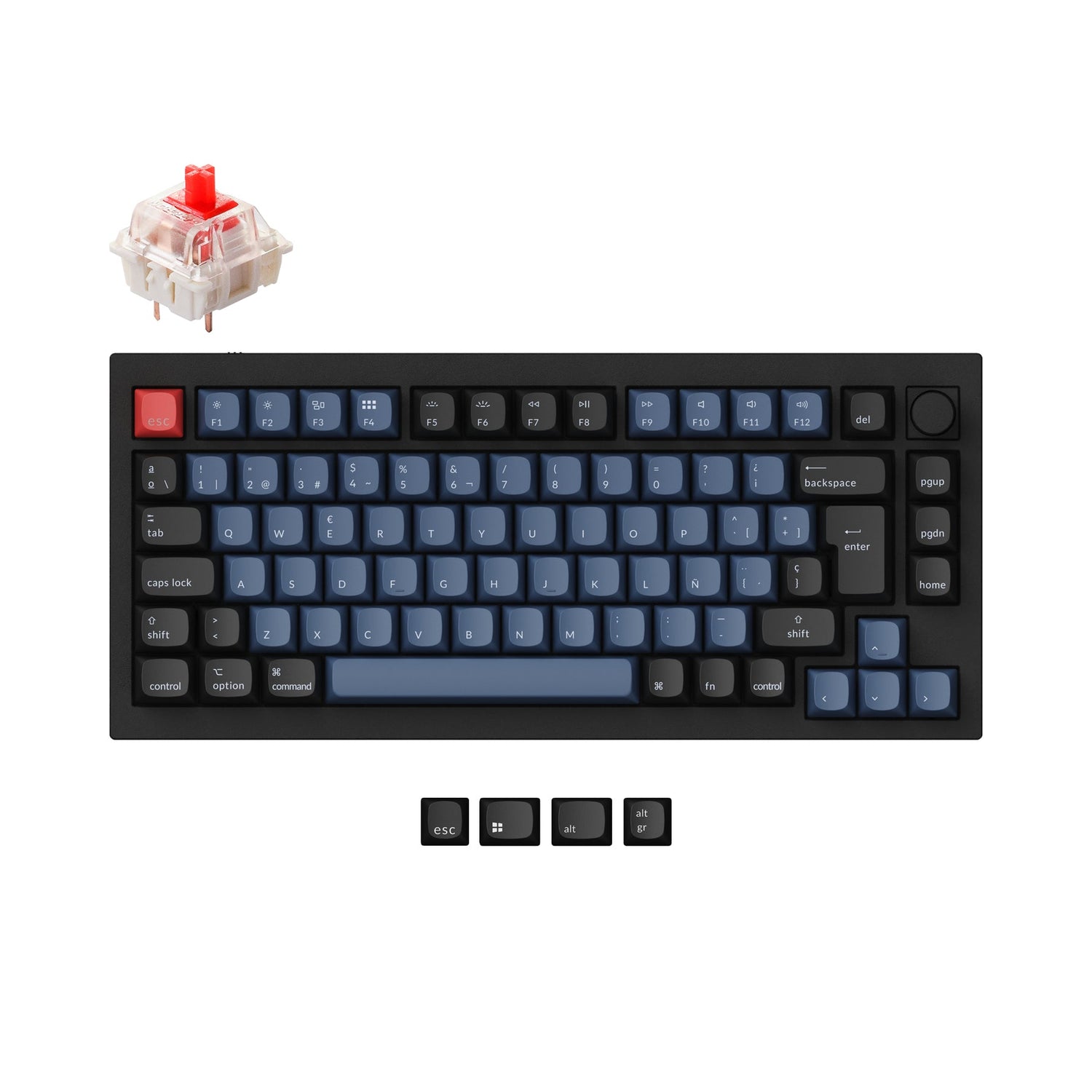

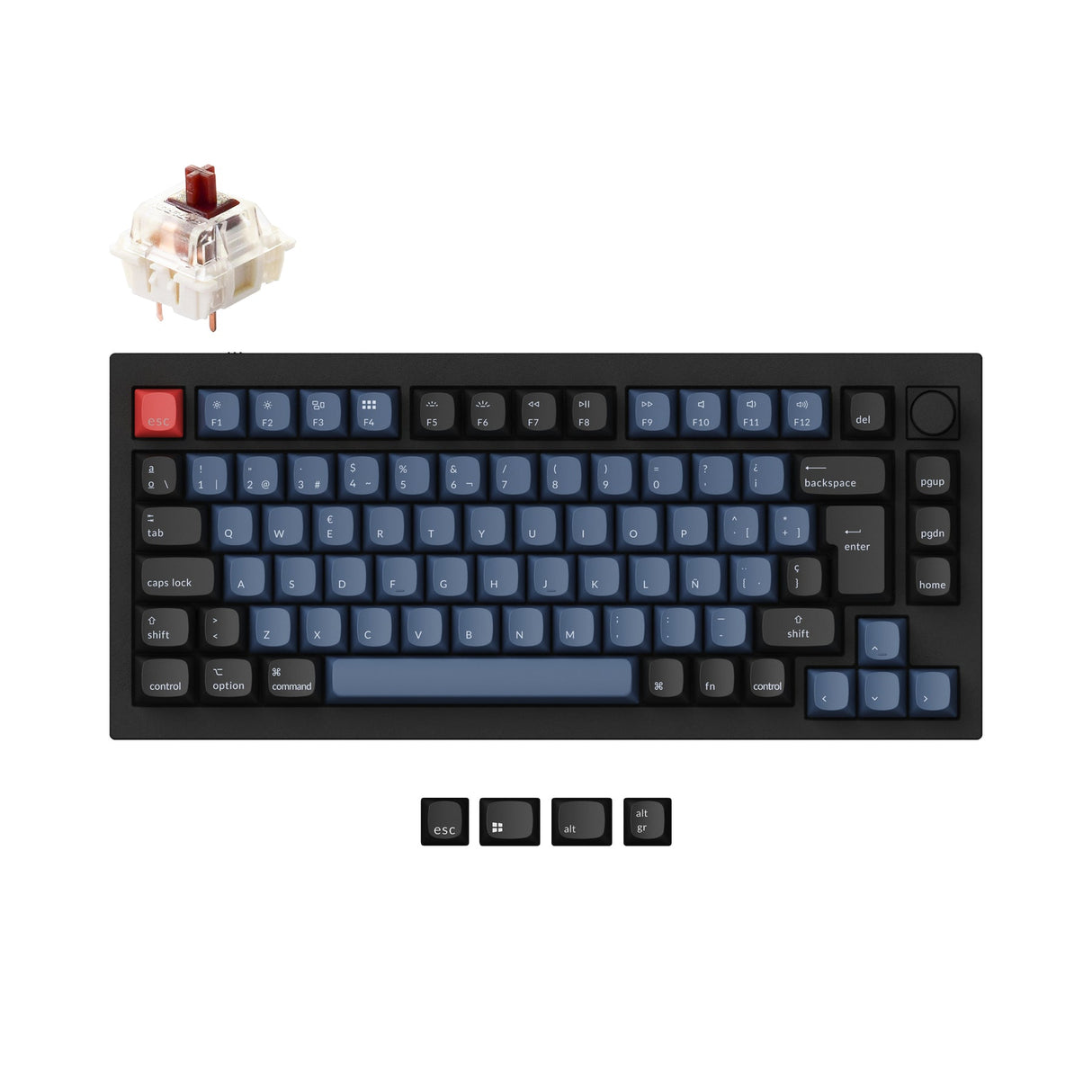

🇪🇸 ES-ISO Layout

Keychron Q1 75% Spanish ISO Layout Custom Mechanical Keyboard

🇨🇭 Swiss-ISO Layout

Keychron Q1 75% Swiss ISO Layout Custom Mechanical Keyboard
Keychron Q1 75% DE ISO Layout Custom Mechanical Keyboard

With keycaps for macOS installed on Q1 DE-ISO layout.

With keycaps for Windows installed on Q1 DE-ISO layout.

The sculpting of a piece of art.

This keyboard is not just a tool, but a piece of art on your desk. The Q1 is created with a 6063 aluminum CNC machined body, polished, anodized and sandblasted finish, and twenty-four manufacturing processes.

Keychron Q1 75% ISO Layout Custom Mechanical Keyboard

You can assemble every part.

To build a fully customizable keyboard, we designed every component to be able to assemble easily. Therefore, you can customize and adjust each component as you wish.

Keychron Q1 75% ISO Layout Custom Mechanical Keyboard

PS: Changing the knob with a badge or key requires an additional PCB (sold separately).

Double-Gasket Design

Double Gasket Design is an industry innovative structure. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases. It significantly reduces the resonance between the metals, which in return, reduces the noise of the impacted metals. This Double-Gasket Structure allows the keyboard to maintain the flexibility of the gasket structure and make the overall typing sound better.

Keychron Q1 75% Custom Mechanical Keyboard
Keychron Q1 75% ISO Layout Custom Mechanical Keyboard

An Epic Core Inside The Keyboard

A brand new ultra-low-power MCU Arm structure that is powerful and armed with 128K Flash to provide more flexibility for developers. The polling rate is up to 1000 Hz out of the box, which makes latency non-existent for the competitive game.

*The special edition (Orange Yellow version) is equipped with MCU ATMEGA32U4.

Programmable Knob

Designed to enhance your creative workflow, the premium rotary encoder allows you to customize your favorite keys and macros through the innovative VIA software with ease.

Rotary encoder function Keychron Q1 75% ISO Layout Custom Mechanical Keyboard

You can easily customize the knob to your desired key or macro commands like zooming in/out, adjusting screen brightness, brush size, opacity, volume, selecting video clips or photos, or backlight hue.

Keychron Q1 75% ISO Layout Custom Mechanical Keyboard

Switch layouts between
macOS & Windows.

Built with the Mac users’ experience in mind while still retaining the compatibility for Windows devices, the Q1 is one of the only few in the market that comes with a Mac multimedia key layout for Mac enthusiasts. With VIA, you can configure your keymap for both Mac and Windows devices.

OSA Profile ABS Backlight Shine-Through Keycaps

To further leverage your typing experience, the Q1 ISO version comes with our unique OSA profile (OEM profile with spherical angle) and ABS backlight shine-through keycaps that aim to provide a more comfortable fingertip feel and a fantastic backlight shine-through effect.

Program The Q1 with
QMK & VIA.

With the Q1 ‘s open-source QMK/VIA, you can intuitively remap your favorite keys and create macros with any key (including the knob) on any operating system (macOS, Windows, or Linux) for a fluid workflow.

Keychron Q1 75% ISO Layout Custom Mechanical Keyboard

Get the Q1 Knob Version keymap working on VIA

Since the VIA code for the Q1 is still awaiting approval from Github, it is not yet automatically recognized. Please download the appropriate keymap JSON file (ANSI or ISO) below, open VIA, turn on "Show Design tab" on "Settings" tab, and drag the JSON file into the “Design” tab on VIA to get the Q1 keymap working on VIA.

Q1 V2 Knob Version Keymap JSON

Q1 V2 Non-Knob Version Keymap JSON

Hot-swappable.

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.

South-facing RGB LED Lights.

The south-facing RGB is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the user installs Cherry-profile alternative keycaps on their keyboard.

Note: The Q1 V2's top case has sharper corners to make it much more compatible with third-party keycaps, such as MT3, SA, XDA, etc.

Keychron Q1 75% Barebone ISO Custom Mechanical Keyboard

Pre-lubed Gateron G Pro Switch

Every detail counts when it comes to a premium typing experience. An optimized mold with more precise positioning and less wobbliness will certainly improve your fingertip feel. Pair that together with our revamped stabilizers and factory pre-lubed Gateron G Pro switches, a smooth travel experience is guaranteed.

Gateron G Pro Switch features
Screw-in PCB Stabilizers

All New Screw-In PCB Stabilizers

The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less wobbly. The big keys’ (space bar, shift, enter, delete) typing experience is now more stable and smooth. The Keychron Q1 V2 also supports third-party stabilizers including Cherry or Durock.

What's in the box?

Keychron Q1 75% ISO Layout Custom Mechanical Keyboard

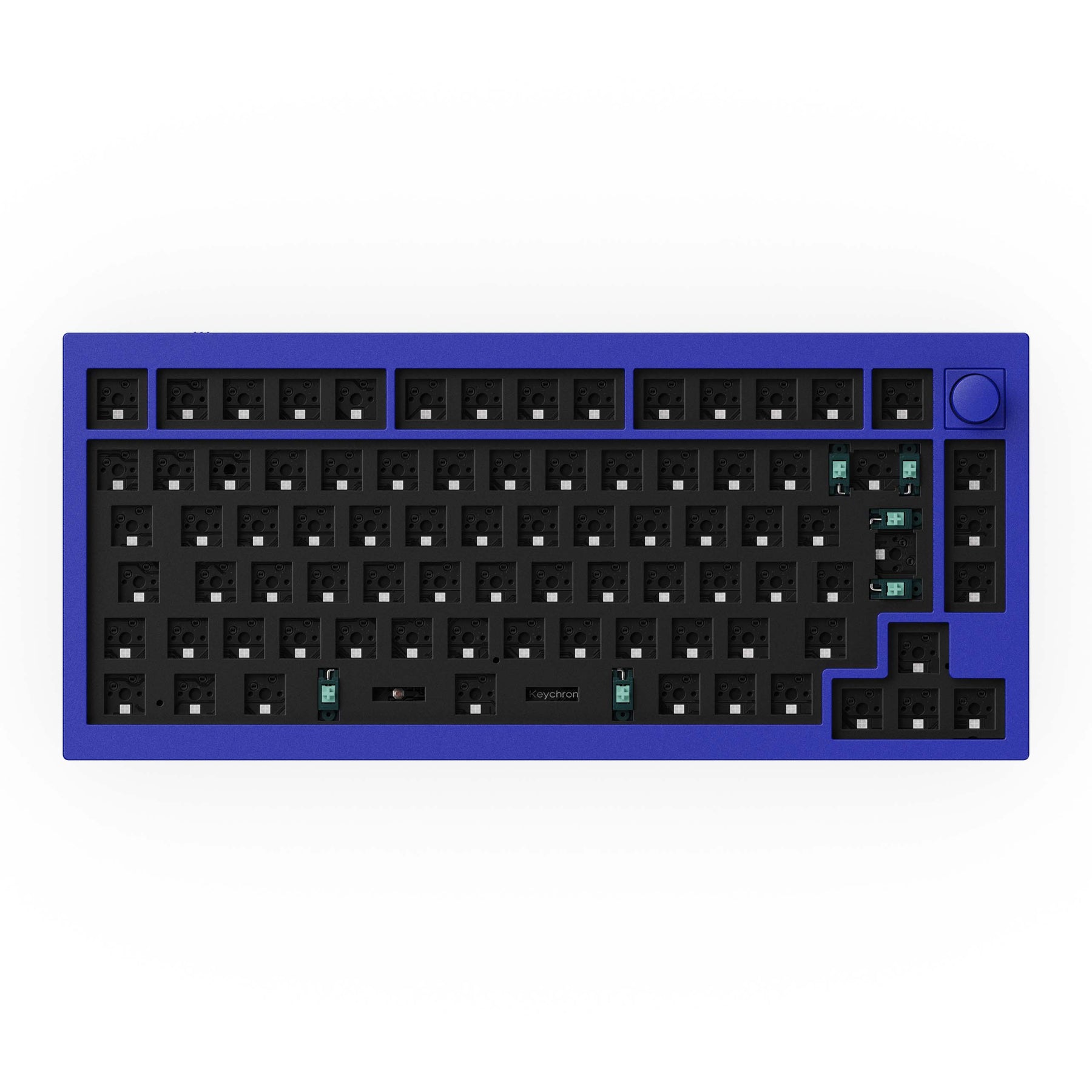

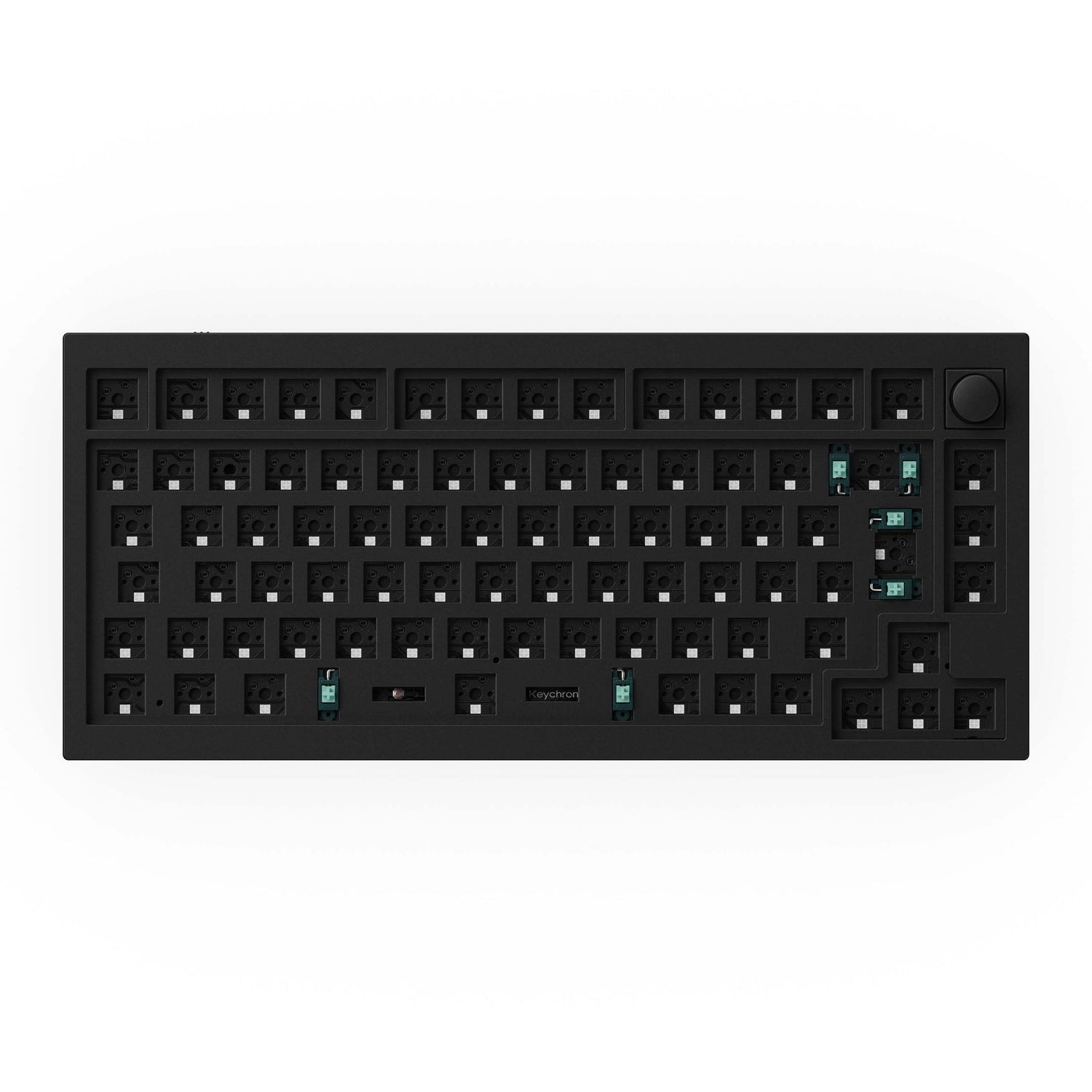

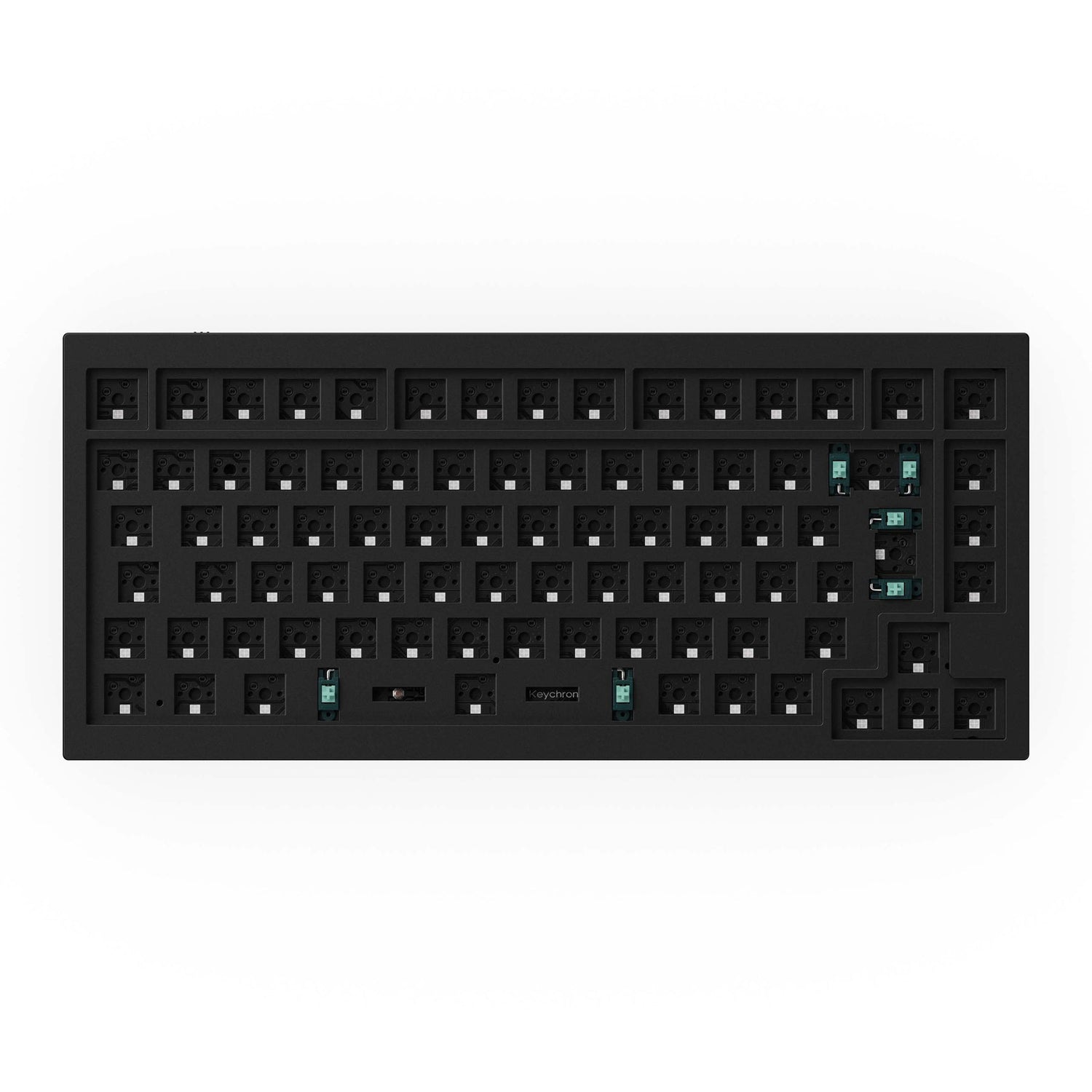

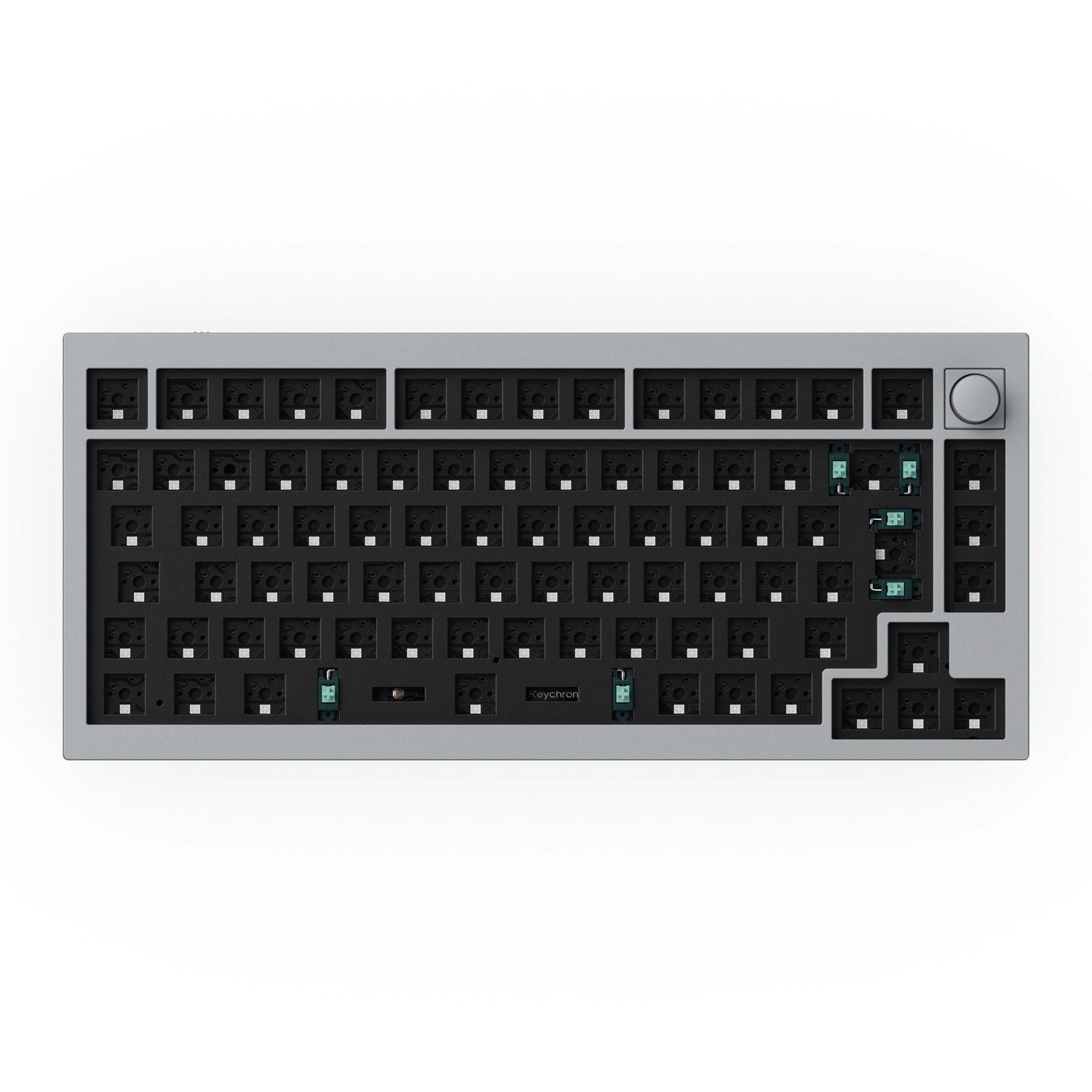

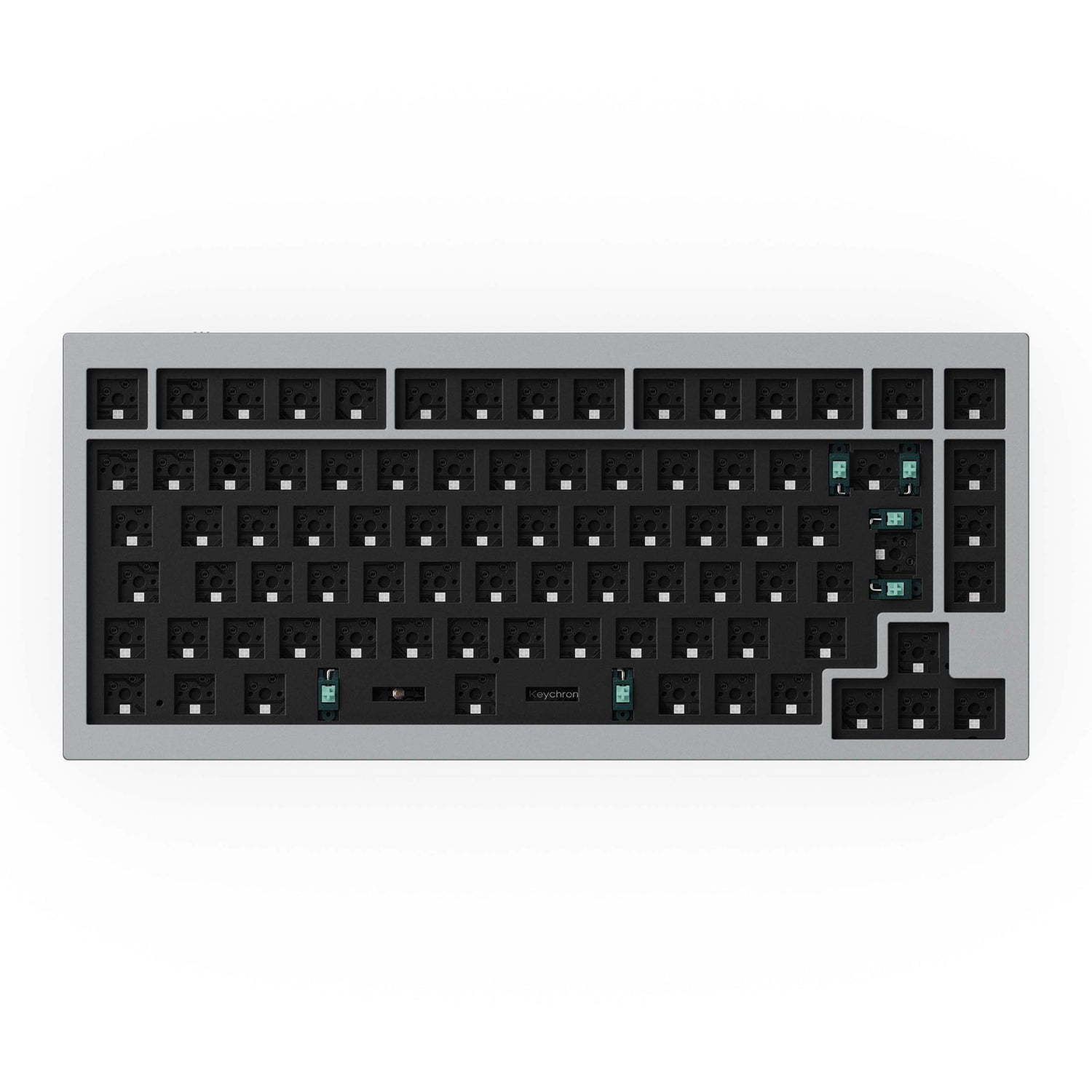

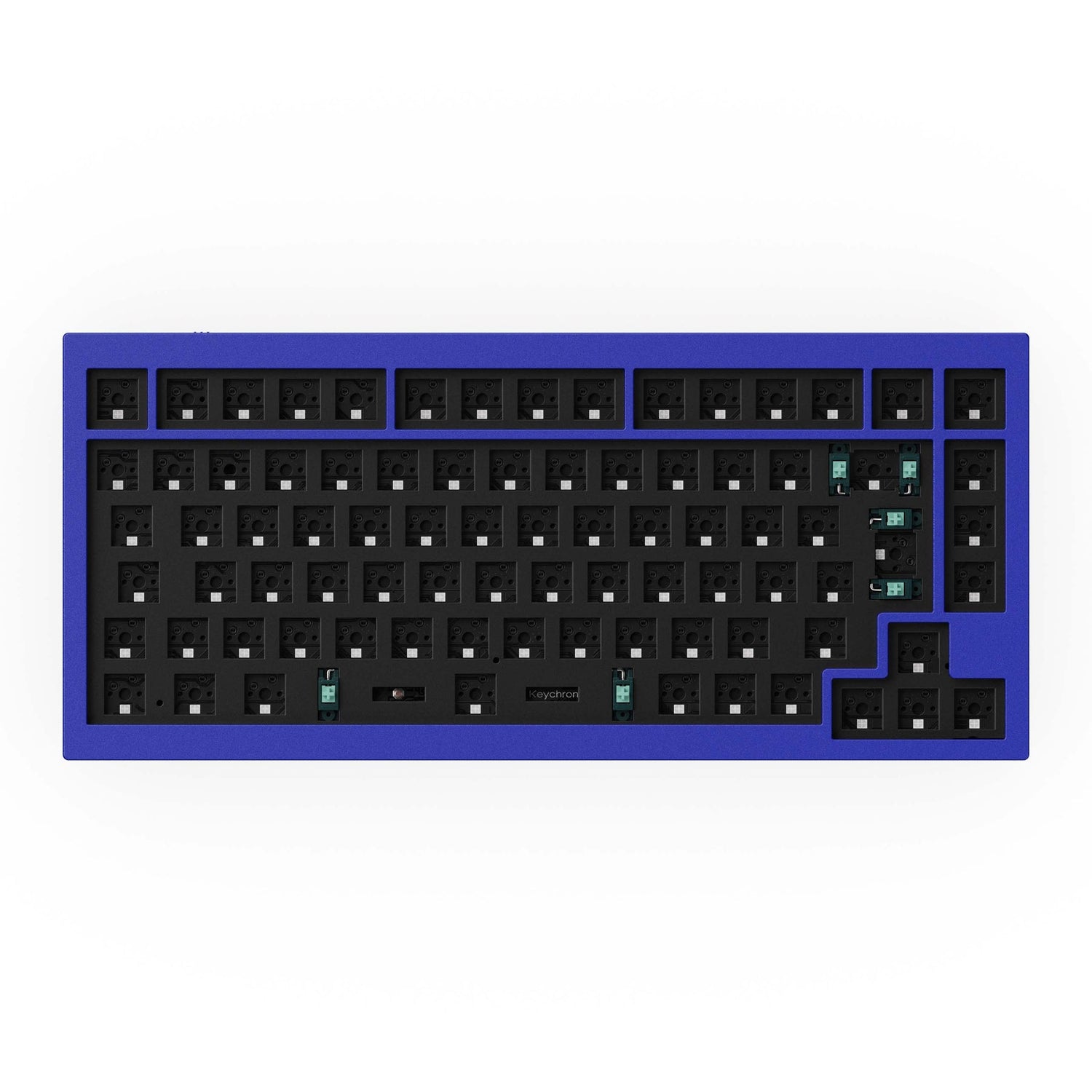

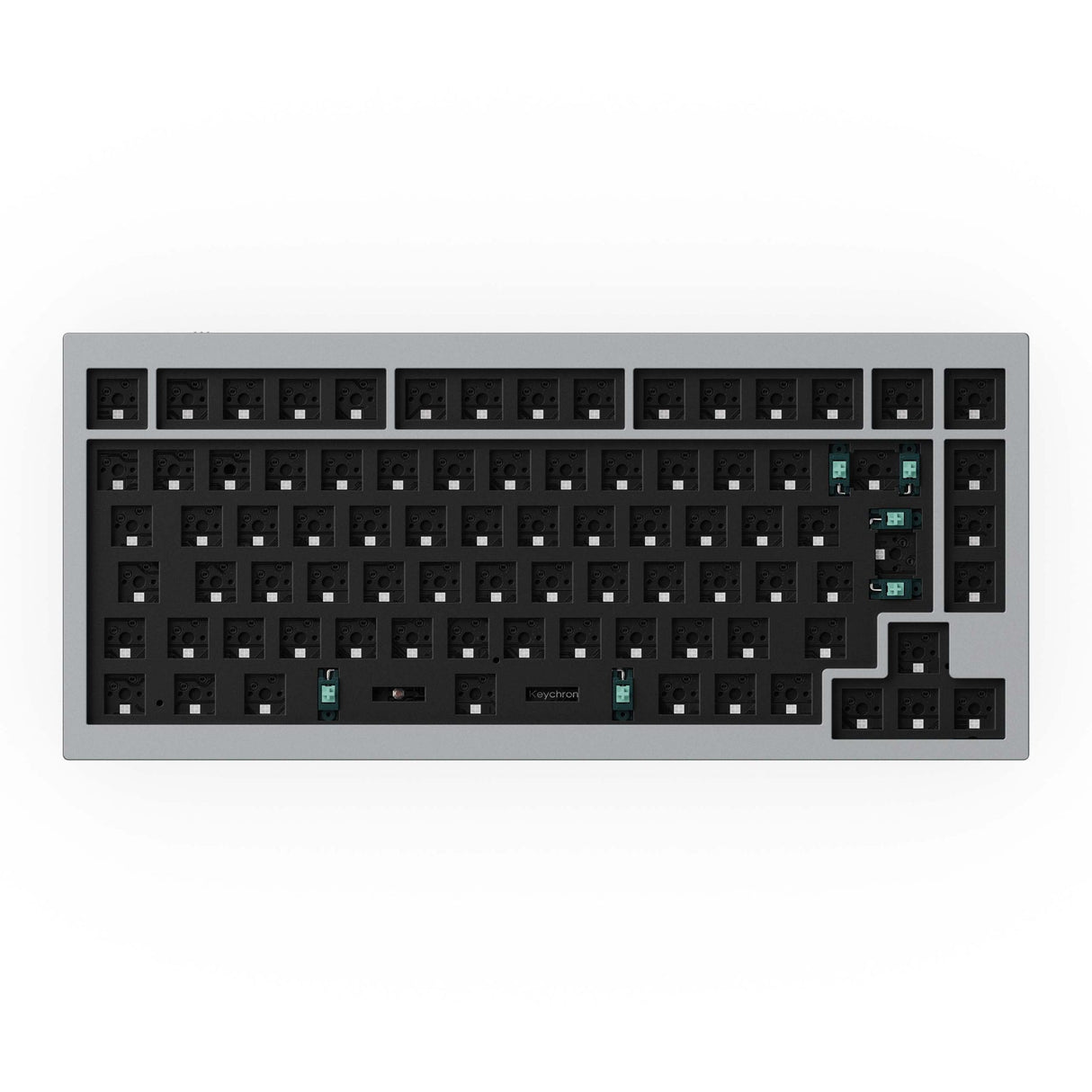

Keychron Q1 75% ISO Custom Mechanical Keyboard Barebone Version

Specs

Width145 mm
Length327.5 mm
Front Height22.6 mm  (without keycaps)
Back Height35.8 mm (without keycaps)
Feet Height2.4 mm
Angle5.2°
Weight1825g ± 10g (Fully assembled weight)
Body MaterialFull CNC machined aluminum
PlateSteel
Polling Rate1000 Hz
LayoutDE-ISO, UK-ISO, Swiss-ISO, Nordic-ISO, FR-ISO, and ES-ISO
KeycapsOSA Profile ABS backlight shine-through keycaps (Fully Assembled version)
MCUUltra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash)
BacklightSouth-facing RGB LED
SwitchGateron G Pro (Fully Assembled version)
Hot-swappable SupportCompatible with most of the 3 pin & 5 pin MX style mechanical switches such as Gateron, Cherry MX and Kailh, etc.
ConnectivityType-C cable
CableType-C cable + Type-A to Type-C adapter
StabilizerScrew-in PCB stabilizer
Keychron Q1 User Guide

Learn more about the Keychron Q1 such as the Q1 shortcuts, assembling the Q1, factory reset, and more in the FAQ section.
